Aluminum & PC Triproof Light,IP65 Waterproof Light for Garage, Basement, Workshop, Warehouse

Rated IP65, this tri-proof light is dust and water-resistant which makes it highly reliable and suitable for various challenging environments. Whether it is in a dusty factory workshop or a damp outdoor area, it can perform its duties flawlessly. The superior material and precise craftsmanship ensure its durability and long lifespan. Its energy-efficient design not only reduces power consumption but also helps to lower your operating costs. The uniform and soft light it emits creates a comfortable and productive lighting atmosphere. With its sleek and modern appearance, it seamlessly blends into any setting, adding a touch of style while providing essential illumination.

  • Overview
  • Product Features
  • Technical Specifications

Description


TP018 Triproof Light factoryTP018 Triproof Light manufacture

Package

Size Rated Power Inner Box Master Carton Q`ty/Carton N.W./Carton G.W./Carton
600mm 20W 583 x 77 x 65mm 598x225x220mm 9PCS 4.95KG 6.35KG
1200mm 40W 1181 x 77 x 65mm 1196x225x220mm 9PCS 9.9KG 11.3KG
1500mm 50W 1481x 77 x 65mm 1496x225x220mm 9PCS 13.5KG 15.2KG
1500mm 75W 1481x 77 x 65mm 1496x225x220mm 9PCS 13.7KG 15.5KG

TP018 Triproof Light supplier

Datasheet

Input Voltage: AC220-240V 50/60Hz

SDCM: <5

PF:>0.95

IP Rate:IP65

CRI: >80Ra

Driver: Tridonic/OSRAM/BOKE

Lifespan: 50,000Hrs(L80B10)

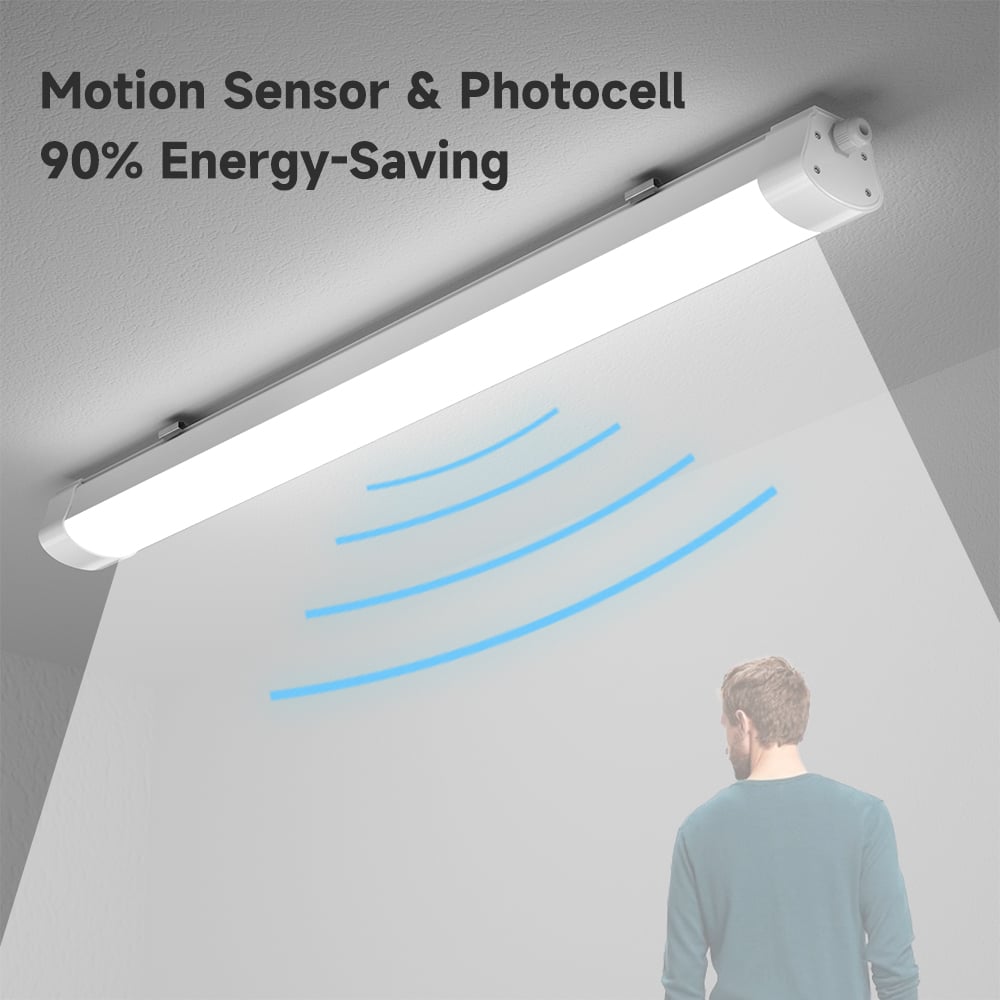

Function: On/Off / Emergency / Microwave Sensor

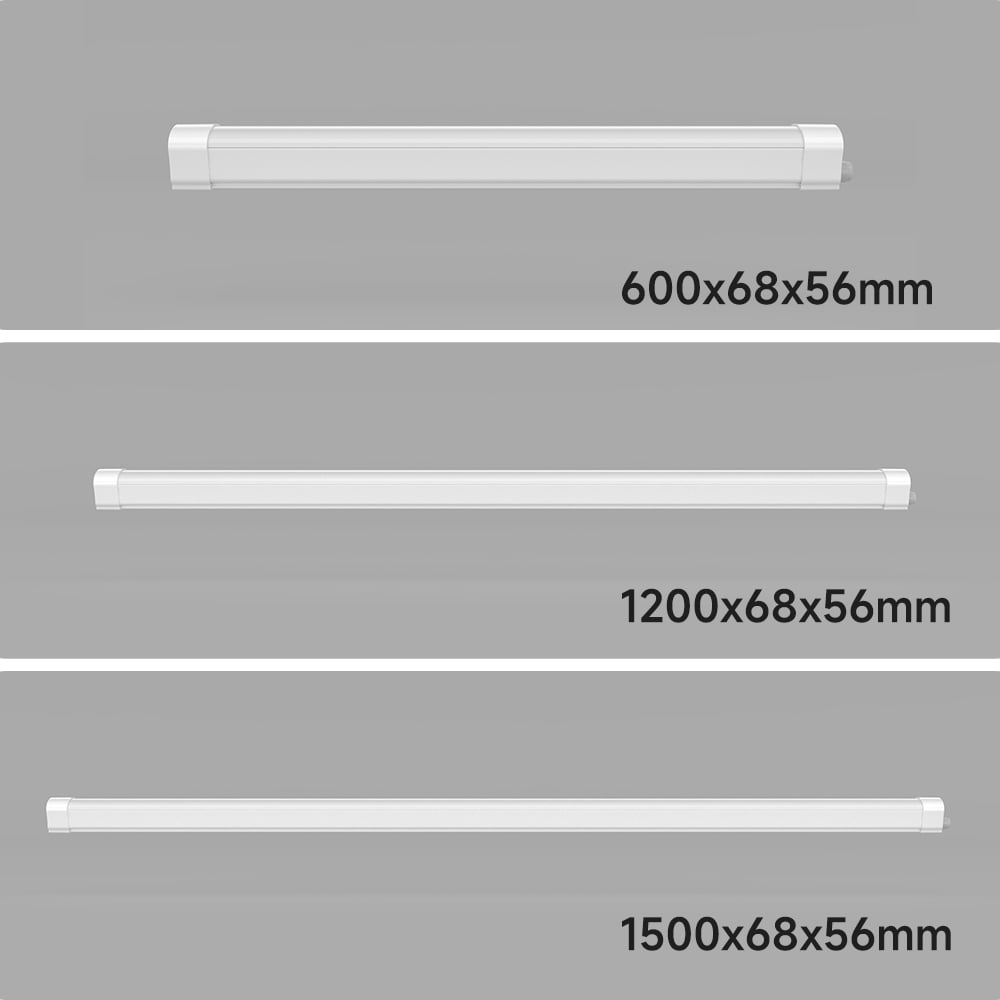

Item Model No. Power Lumen Luminous Efficacy CCT(K) L*W*H
1 TP018-06C020 20W Max 2400lm >120lm/W 3000K/4000K/5000K/6000K 568x72x60mm
2 TP018-12C040 40W Max 4800lm >120lm/W 3000K/4000K/5000K/6000K 1166x72x60mm
3 TP018-15C055 55W Max 6600lm >120lm/W 3000K/4000K/5000K/6000K 1466x72x60mm
4 TP018-15C075 75W Max 9000lm >120lm/W 3000K/4000K/5000K/6000K 1466x72x60mm
